Product Description

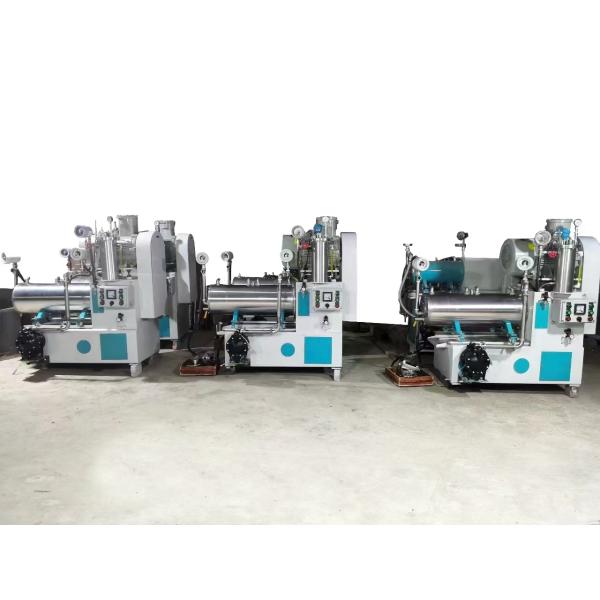

SB series of horizontal sand mills
The SB type horizontal sand mill is suitable for homogenization and grinding of solid and liquid in fluid materials in industries such as coatings, dyes, inks, photosensitive materials, food, non-metallic materials, and papermaking. It is particularly suitable for materials with high viscosity, low fineness, and high volatility.
Principle
This machine is a fully enclosed wet grinding and dispersion mechanical device that operates continuously. The feeding pump feeds the liquid-solid mixture that has been pre-dispersed and processed into the cylinder from the feeding end. Together with the pre-installed grinding balls, they are cut by the high-speed rotating dispersion plates, causing the solid particles and aggregates in the material to collide and shear violently with the grinding balls, rapidly grinding the material particles fine and dispersing the aggregates In a short period of time, extremely fine fineness and a very narrow particle size distribution range are achieved. The ground and dispersed materials flow out through the dynamic separator and screen ring, while the grinding balls remain in the cylinder.
Features
Fully enclosed operation ensures workshop hygiene and no solvent evaporation. Wet grinding enables the medium to be ground more rapidly and evenly. Continuous operation reduces the labor intensity of workers. Different shapes of grinding discs are designed for the characteristics of different media. Special materials for grinding cylinders and grinding discs prevent metal contamination of the medium. Double water channels for powerful cooling, with the same appearance The dynamic separator has twice the effect, allowing for smoother discharging and discharging. The integrated design of the mechanical, electrical and pneumatic systems can enhance the degree of automation.
Main technical specifications and parameters
Note: Please specify your usage requirements when placing an order. We can design and manufacture according to your requirements
Our company
A corner of the workshop
Corporate honors
|
|
SB Horizontal Sand Mill Series Is A Wet Grinding And Dispersion Machine Images
|
